MICRO HEMATOCRIT CENTRIFUGE
Features:
*Micro hematocrit centrifuge is an indispensable instrument in laboratory.
*Auto-balancing system can extend motor life and reduce noise.
*With safety switch, when lid is lifted during operation, the rotor will stop spinning.
*Good ventilation system prevents the motor from overheating.
Precision timer with bell can be set from 0 to 15 minutes.
*Manual brake can faster control over the spin down cycle.

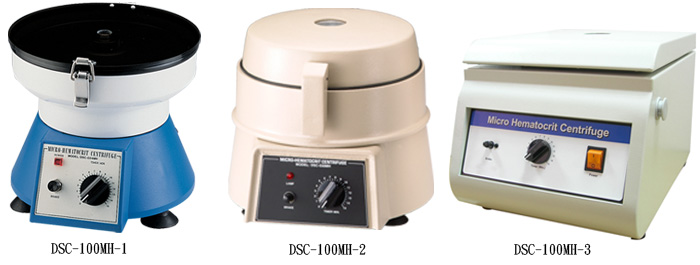

*There are three models available.
(1) Model DSC-100MH-1 with clear lid, metal top and ABS plastic bottom is your economic choice.
(2) Model DSC-100MH-2 with all metal housing is heavy duty.
(3) Model DSC-100MH-3 with all metal housing and inner stainless steel chamber can make operation quietly.
*Quality certification: ISO 9001, CE
Specifications for DSC-100MH series:
|
Model
|
Motor
|
Rotor
|
Timer(Min.)
|
Standard Accessory
|
Weight (kg)
(N.W./G.W)
|
Size(mm)
(WxDxH)
|
|
DSC-100HM-1
|
Universal motor
|
HT-24
|
0~15 min.
Mechanical timer
|
Percentage reader
|
4.5/5.0
|
220x240x200
|
|
DSC-100HM-2
|
9.0/9.5
|
300x300x240
|
|
DSC-100HM-3
|
13.0/14.0
|
320x355x255
|
|
Power supply: AC110V 60Hz (220V 50/60Hz available)
|

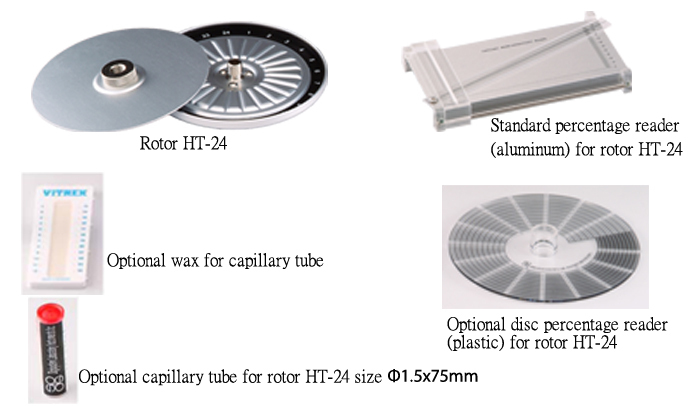

Specifications of rotor:
|
Model
|
Speed(rpm)
|
Type
|
Max. RCF(g)
|
Capacity
|
|
HT-24
|
12,000(fixed)
|
Disc
|
14,810
|
capillary tube (Diam.1.5 x 75 mm) x 24
|
|
