Dry Bath use interchangeable heating block modules for a variety of applications, including restriction digests, denaturing DNA, BUN, melting agar, coagulation studies, hybridization and Hot Start thermo-cycled reaction.
Features:

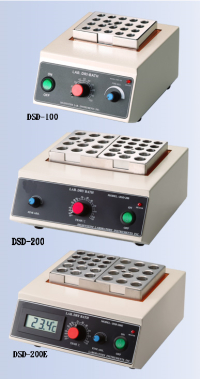

*Dry bath DSD-100&DSD-200 series are analog dry baths are more economical versions.
*Our dry baths are available in one or two block capacity models.
*Test tubes insert into aluminum blocks which maintain temperature stability.
*Easy temperature adjustment is made by turning a reference knob.
*combinations with different blocks provide a variety of applications.
*DSD-200E with a large LCD digital display lets user see the temperature scale easily.
*Quality certification: ISO 9001
Specifications:
|
Model |
DSD-100 |
DSD-200 |
DSD-200E |
|
Block capacity |
1 |
2 |
2 |
|
Temperature readout |
Thermometer |
Thermometer |
LCD
digital display |
|
Temperature setting |
Analog |
|
Temperature control |
Analog IC |
|
Temperature sensor |
NTC
Thermistors |
|
temperature range |
Ambient +5℃ ~100℃ |
|
Uniformity |
±0.5℃ at37℃ |
|
Stability |
±0.5℃ |
|
Power watter |
80W |
160W |
160W |
|
Size(mm)(WxDxH) |
160x210x120 |
250x230x120 |
205x230x120 |
|
Weight(kg)(N.W./G.W.) |
2.5/3.0 |
4.0/4.5 |
4.0/4.5 |
|
Power supply: AC 110V 60Hz
(220V 50/60Hz available) |
Specifications of block:
|
Model |
BLK-0011 |
BLK-0013 |
BLK-0016 |
BLK-1316 |
|
Capacity |
11.5mmx20places |
13.5mmx20places |
16.5mmx12places |
13.5mmx12places
&16.5mmx6places |
|
Size(mm)(WxDxH) |
101x76x52 |
|
