S-Series Desktop Sterilize boiler    Home > Products

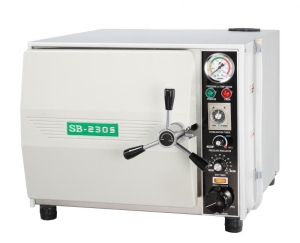

S-Series Type-Desktop sterilize boiler

Feature:

 Ø  Automatic cycle system

 Ø  User friendly.



Model

230S

260S-1

260S-2

300S-1

300S-2

Chamber dimensions (Φ x D)

23cm x 41cm

26 cm x 41cm

26 cm x 46cm

30 cm x 50cm

30 cm x 61cm

Chamber capacity(L)

17

22

24

35

43

Overall size(mm)

(LxWxH)

48.x485x400

485x485x400

535x515x400

610x570x480

720x570x480

Power supply 110V

15A/20A

None

Power supply 220V

10A/15A

20A

Heater

1500W/2000W

Sterilize Temperature

Lowest at 121,Highest at 135

Sterilize Pressure

Highest 2.1kg/ c, including under pressure

Sterilize Time

By case. Please refer to the instruction..

Dry Time

By case. Please refer to the instruction.

Sterilizer construction

Stainless steel SUS#304.Boiler chamber surface with polish.

Outer shell material

Stainless steel SUS#304 outer shell with heat-resistance coating

ü Automatic cycle system- After the process of heating, sterilizing, circulating water and drying, the alarm will ring and it will shut down automatically.

ü Water tank

ü  Stainless steel Sterilization boxes. (Box size is according to the chamber)

ü  Water level instruction- easier to control amount of water

ü  Smart valves- Allows excess water and air to be drained away, enhancing the sterilization performance.

ü Safety Devices:

1.     Dual pressure adjustment – The inner pressure can be adjusted by vents automatically, when the inner pressure is over standard.

2.     Avoid overheating cutoff device - When inner temperature is overheated, power will be shut down automatically.

3.     Low-water cutoff device- low-water cutoff device prevents burnout of insufficient water in the chamber.
